⚙️ Core System Workflows

MedMemory AI operates through two primary workflows:

  1. Document Ingestion Pipeline — Converts medical documents into structured medical memory.
  2. Conversational RAG Pipeline — Retrieves and synthesizes relevant patient history for AI-powered chat.

1. Document Ingestion Pipeline

This workflow transforms prescriptions, lab reports, discharge summaries, and clinical documents into structured medical records and semantic memory.

Execution Sequence

1. Document Upload & OCR

Users upload:

  • Prescriptions
  • Lab Reports
  • Scan Reports
  • Discharge Summaries

Documents are processed using:

  • PyMuPDF (PDF extraction)
  • Tesseract OCR (images and scanned PDFs)

to obtain clean machine-readable text.

2. Text Cleaning & Normalization

Extracted text undergoes:

  • OCR noise removal
  • Whitespace normalization
  • Header/Footer removal
  • Basic formatting cleanup

to improve downstream extraction quality.

3. Medical Information Extraction

A local LLM analyzes the cleaned text and extracts clinically relevant information into a validated structured schema.

Examples:

  • Doctor Name
  • Hospital Name
  • Diagnosis
  • Symptoms
  • Medications
  • Dosage
  • Findings
  • Tests
  • Recommendations
  • Document Date

All outputs are validated using Pydantic models before storage.

4. Structured Document Construction

The extracted information is transformed into a normalized medical document object.

Example:

{
  "doctor": "Dr. Sharma",
  "document_date": "2025-01-10",
  "diagnosis": ["Type 2 Diabetes"],
  "medications": ["Metformin 500mg"],
  "findings": ["HbA1c 9.2%"]
}

5. Hybrid Storage Layer

PostgreSQL

Stores structured medical records:

  • Patient Profile
  • Medical Documents
  • Diagnoses
  • Treatments
  • Findings
  • Timeline Metadata

PostgreSQL acts as the system's source of truth.

Qdrant

The document is summarized into a concise semantic representation.

Example:

Type 2 Diabetes diagnosed.
Metformin initiated.
HbA1c elevated at 9.2%.

The summary is embedded using:

mxbai-embed-large

and stored in Qdrant with metadata:

{
  "patient_id": "...",
  "postgres_id": "...",
  "document_type": "...",
  "doctor": "...",
  "date": "..."
}

This enables semantic retrieval during conversations.

Storage Outcome

Medical Document
        ↓
OCR
        ↓
Structured Extraction
        ↓
 ┌──────────────┬──────────────┐
 │              │              │
PostgreSQL    Summary      Metadata
(Source)         ↓             ↓
                 Embedding
                     ↓
                 Qdrant

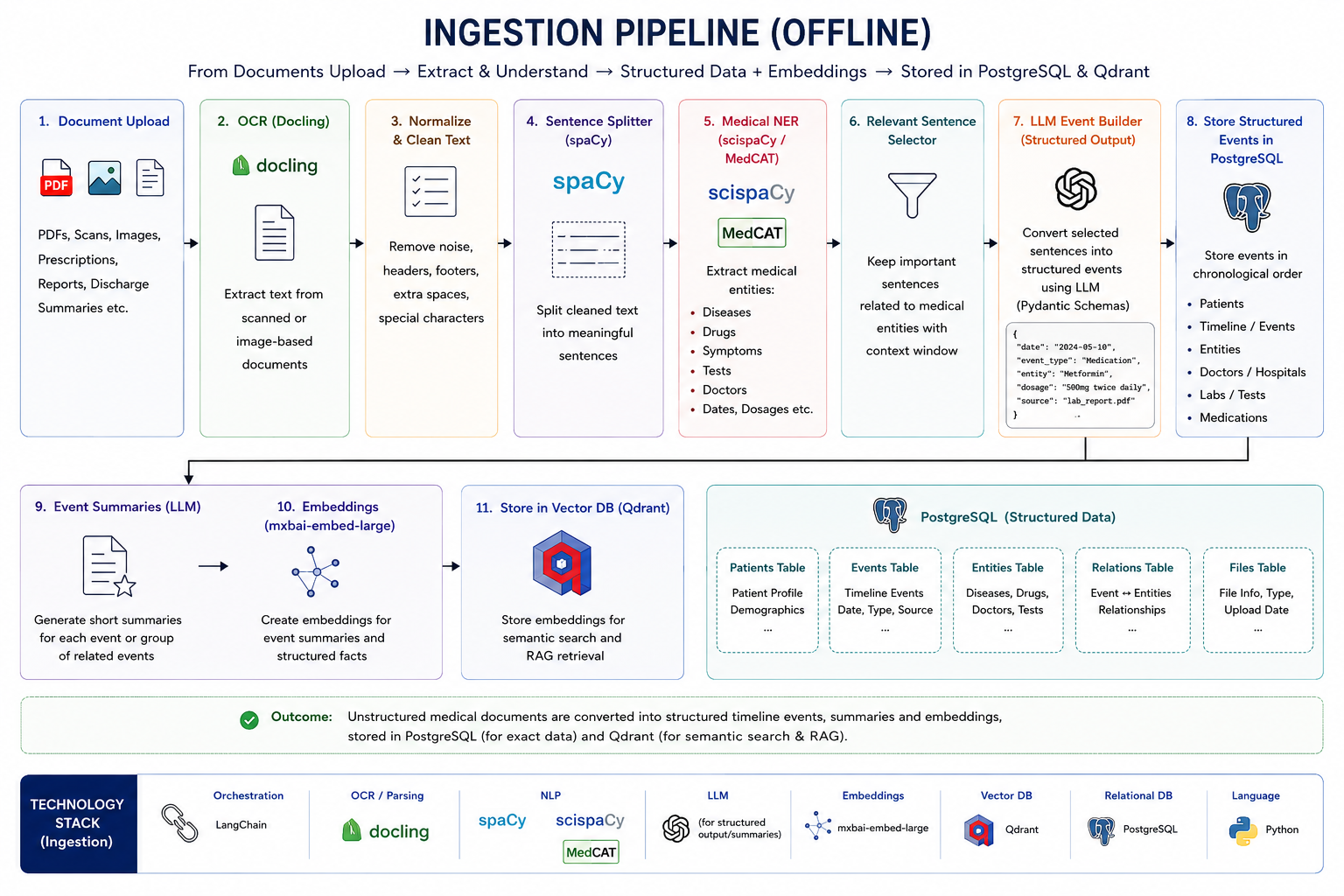

Ingestion-Workflow

2. Conversational RAG Pipeline

This workflow enables users to chat with their complete medical history using retrieval-augmented generation (RAG).

Execution Sequence

1. User Query

The user submits a question.

Examples:

What medications am I currently taking?

When was diabetes diagnosed?

How has my treatment changed over time?

2. Intent Classification

A lightweight LLM router classifies the query into one of three categories:

Structured

Requires exact database records.

Examples:

Show all medications.

Show my latest prescription.

List all doctors visited.

Semantic

Requires semantic understanding of historical context.

Examples:

Summarize my heart-related issues.

What patterns do you see in my health history?

Hybrid

Requires both structured records and semantic context.

Examples:

How has my diabetes treatment changed over time?

Compare my current treatment with previous treatments.

3. Retrieval Layer

Structured Path

The system directly retrieves relevant records from PostgreSQL.

Examples:

  • Medications
  • Diagnoses
  • Timeline Events
  • Reports

Semantic Path

The query is embedded and searched against Qdrant.

Retrieval is filtered by:

patient_id

to ensure patient isolation.

Hybrid Path

The system:

Query
    ↓
Qdrant Search
    ↓
Retrieve postgres_id metadata
    ↓
Fetch source records from PostgreSQL

This combines:

  • Semantic relevance from Qdrant
  • Structured accuracy from PostgreSQL

without requiring text-to-SQL generation.

4. Context Builder

Retrieved information is:

  • Deduplicated
  • Ranked
  • Organized
  • Compressed

into a clean context package.

Example:

Diagnosis:
Type 2 Diabetes

Timeline:
Jan 2023 → Diagnosis
Feb 2023 → Metformin Started
Jul 2024 → Dosage Increased

Relevant Notes:
Patient showed improved glucose control.

5. Response Generation

The compiled context is passed to a local LLM through Ollama.

The model is instructed to:

  • Answer only from provided context
  • Avoid unsupported assumptions
  • Cite relevant medical history when possible

This significantly reduces hallucinations.

6. Conversational Memory

LangGraph maintains conversation state including:

  • Previous user questions
  • Previous AI responses
  • Active patient context

allowing the system to handle follow-up questions naturally.

Example:

User:
When was diabetes diagnosed?

Assistant:
January 2023.

User:
Who prescribed the medication?

Assistant:
Dr. Sharma prescribed Metformin during the initial diagnosis visit.

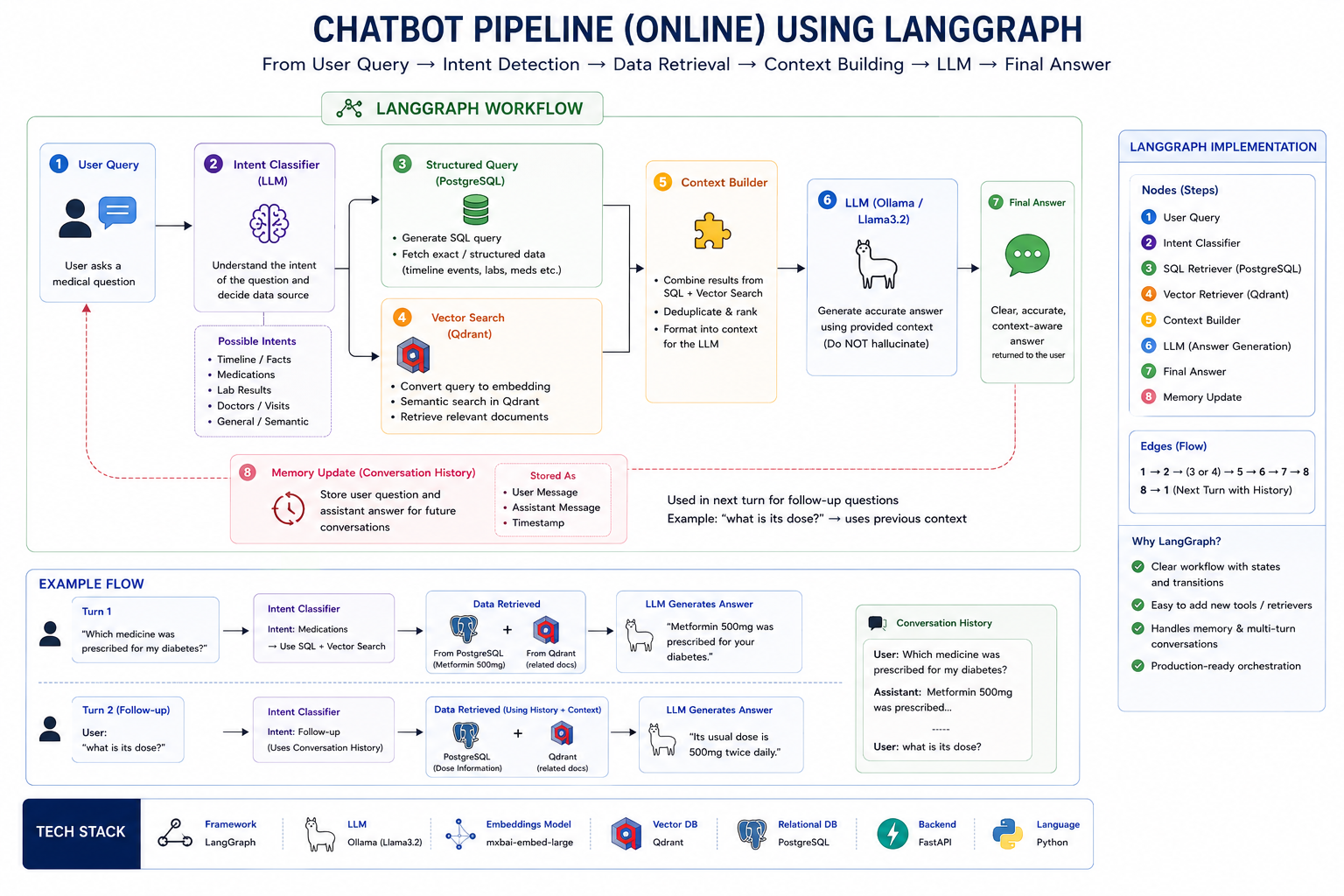

Retrieval Architecture

User Query
      ↓
Intent Router
      ↓

 ┌────────────┬────────────┬────────────┐
 │Structured  │ Semantic   │  Hybrid    │
 └────────────┴────────────┴────────────┘

      ↓             ↓             ↓

 PostgreSQL      Qdrant      Qdrant
                               ↓
                         postgres_id
                               ↓
                          PostgreSQL

      ↓             ↓             ↓

        Context Builder
               ↓
          Ollama LLM
               ↓
          Final Answer

Chatbot-Workflow
